Wave-Glide™ Rail Positioning System

Wave-Glide

Frequency Extension System to 330 GHz

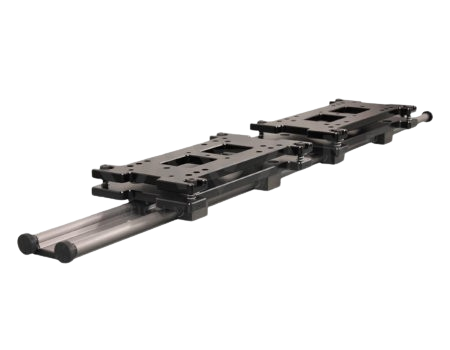

The Wave-Glide™ Rail Positioning System is a patent-pending rail system designed by Eravant and Copper Mountain Technologies to streamline millimeter-wave VNA testing using frequency extenders and the Proxi-Flange™ contactless flange. The system eliminates the need for inter-connecting waveguides, avoids time-consuming manual alignment, and increases throughput by providing a stable, accurate, and repeatable platform. It consists of a set of linear rails with mounting plates to connect various vendor extender modules, and supports the Proxi-Flange™ family from WR-42 up to WR-05 (covering up to ~220 GHz).

Features

Key capabilities and advantages

Eliminates the need for inter-connecting waveguides → reduces alignment complexity and saves time in test setup.
Provides a stable, linear rail + mounting plate platform for repeatable, accurate connections for VNA extenders and Proxi-Flange™ interfaces.
Compatible with a variety of third-party extender modules and can be customized with different mounting plates to support multiple brands.
Enhances productivity and reliability in volume production or automated test lines with frequent connections/disconnections.

Specifications

Technical specifications and parameters

Impedance	50 Ohm
Compatible waveguide bands / Proxi-Flange™	supports Proxi-Flange™ contactless flange across waveguide bands from WR-42 up through WR-05 / up to ~220 GHz.
